Modelling TMS-EEG evoked responses#
This example runs a minimal example based on the analysis in the paaper :
- Momi, D., Wang, Z., Griffiths, J.D. (2023).
“TMS-evoked responses are driven by recurrent large-scale network dynamics.”
# eLife, [doi: 10.7554/eLife.83232](https://elifesciences.org/articles/83232)
The code includes data fetching, model fitting, and result visualization based on the methods presented in the paper.
First we must import the necessary packages required for the example:
# System-based packages
import os
import sys
sys.path.append('..')
# Whobpyt modules taken from the whobpyt package
import whobpyt
from whobpyt.datatypes import Parameter as par, Timeseries
from whobpyt.models.jansen_rit import JansenRitModel,JansenRitParams
from whobpyt.run import ModelFitting
from whobpyt.optimization.custom_cost_JR import CostsJR
from whobpyt.datasets.fetchers import fetch_egtmseeg
# Python Packages used for processing and displaying given analytical data (supported for .mat and Google Drive files)
import numpy as np
import pandas as pd
import scipy.io
import gdown
import pickle
import warnings
warnings.filterwarnings('ignore')
import matplotlib.pyplot as plt # Plotting library (For Visualization)
import mne # Neuroimaging package
Download and load example data
data_dir = fetch_egtmseeg()
Load EEG data
eeg_file_name = os.path.join(data_dir, 'Subject_1_low_voltage.fif')
epoched = mne.read_epochs(eeg_file_name, verbose=False);
evoked = epoched.average()
Load Atlas
atlas_file_name = os.path.join(data_dir, 'Schaefer2018_200Parcels_7Networks_order_FSLMNI152_2mm.Centroid_RAS.txt')
atlas = pd.read_csv(atlas_file_name)
labels = atlas['ROI Name']
coords = np.array([atlas['R'], atlas['A'], atlas['S']]).T
conduction_velocity = 5 #in ms
Compute the distance matrix
dist = np.zeros((coords.shape[0], coords.shape[0]))
for roi1 in range(coords.shape[0]):
for roi2 in range(coords.shape[0]):
dist[roi1, roi2] = np.sqrt(np.sum((coords[roi1,:] - coords[roi2,:])**2, axis=0))
dist[roi1, roi2] = np.sqrt(np.sum((coords[roi1,:] - coords[roi2,:])**2, axis=0))
Load the stim weights matrix which encode where to inject the external input
stim_weights = np.load(os.path.join(data_dir, 'stim_weights.npy'))
stim_weights_thr = stim_weights.copy()
labels[np.where(stim_weights_thr>0)[0]]
Load the structural connectivity matrix
sc_file = os.path.join(data_dir, 'Schaefer2018_200Parcels_7Networks_count.csv')
sc_df = pd.read_csv(sc_file, header=None, sep=' ')
sc = sc_df.values
sc = np.log1p(sc) / np.linalg.norm(np.log1p(sc))
Load the leadfield matrix
lm = os.path.join(data_dir, 'Subject_1_low_voltage_lf.npy')
ki0 =stim_weights_thr[:,np.newaxis]
delays = dist/conduction_velocity
define options for JR model
eeg_data = evoked.data.copy()
time_start = np.where(evoked.times==-0.1)[0][0]
time_end = np.where(evoked.times==0.3)[0][0]
eeg_data = eeg_data[:,time_start:time_end]/np.abs(eeg_data).max()*4
node_size = sc.shape[0]
output_size = eeg_data.shape[0]
batch_size = 20
step_size = 0.0001
num_epochs = 2 # num_epochs = 20
tr = 0.001
state_size = 6
base_batch_num = 20
time_dim = 400
state_size = 6
base_batch_num = 20
hidden_size = int(tr/step_size)
prepare data structure of the model
data_mean = Timeseries(eeg_data, num_epochs, batch_size)
get model parameters structure and define the fitted parameters by setting non-zero variance for the model
lm = np.zeros((output_size,200))
lm_v = np.zeros((output_size,200))
params = JansenRitParams(A = par(3.25),
a= par(100,100, 2, True),
B = par(22),
b = par(50, 50, 1, True),
g=par(500,500,2, True),
g_f=par(10,10,1, True),
g_b=par(10,10,1, True),
c1 = par(135, 135, 1, True),
c2 = par(135*0.8, 135*0.8, 1, True),
c3 = par(135*0.25, 135*0.25, 1, True),
c4 = par(135*0.25, 135*0.25, 1, True),
std_in= par(np.log(10), np.log(10), .1, True, True),
vmax= par(5),
v0=par(6),
r=par(0.56),
y0=par(-2, -2, 1/4, True),
mu = par(np.log(1.5),
np.log(1.5), .1, True, True, lb=0.1),
k =par(5., 5., 0.2, True, lb=1),
k0=par(0),
cy0 = par(50, 50, 1, True),
ki=par(ki0),
lm=par(lm, lm, 1 * np.ones((output_size, node_size))+lm_v, True)
)
call model want to fit
model = JansenRitModel(params,
node_size=node_size,
TRs_per_window=batch_size,
step_size=step_size,
output_size=output_size,
tr=tr,
sc=sc,
lm=lm,
dist=dist,
use_fit_gains=True,
use_fit_lfm = False)
# create objective function
ObjFun = CostsJR(model)
call model fit
F = ModelFitting(model, ObjFun)
model training
u = np.zeros((node_size,hidden_size,time_dim))
u[:,:,80:120]= 1000
F.train(u=u, empRecs = [data_mean], num_epochs = num_epochs, TPperWindow = batch_size)
Epoch: 0
epoch: 0 loss: 2.797506 Pseudo FC_cor: -0.0019352055409964397 cos_sim: 0.015336648396166268
Epoch: 1
epoch: 1 loss: 4.2236586 Pseudo FC_cor: 0.09043059210754671 cos_sim: -0.08466255113328167
quick test run with 2 epochs
F.evaluate(u = u, empRec = data_mean, TPperWindow = batch_size, base_window_num = 20)
FC_cor: 0.09714261945917807 cos_sim: 0.016764393742328312
load in a previously completed model fitting results object
full_run_fname = os.path.join(data_dir, 'Subject_1_low_voltage_fittingresults_stim_exp.pkl')
F = pickle.load(open(full_run_fname, 'rb'))
F.evaluate(u = u, empRec = data_mean, TPperWindow = batch_size, base_window_num = 20)
FC_cor: 0.48466977463149974 cos_sim: 0.36703620545832744
Plot the original and simulated EEG data
epoched = mne.read_epochs(eeg_file_name, verbose=False);
evoked = epoched.average()
ts_args = dict(xlim=[-0.1,0.3])
ch, peak_locs1 = evoked.get_peak(ch_type='eeg', tmin=-0.05, tmax=0.01)
ch, peak_locs2 = evoked.get_peak(ch_type='eeg', tmin=0.01, tmax=0.02)
ch, peak_locs3 = evoked.get_peak(ch_type='eeg', tmin=0.03, tmax=0.05)
ch, peak_locs4 = evoked.get_peak(ch_type='eeg', tmin=0.07, tmax=0.15)
ch, peak_locs5 = evoked.get_peak(ch_type='eeg', tmin=0.15, tmax=0.20)
times = [peak_locs1, peak_locs2, peak_locs3, peak_locs4, peak_locs5]
plot = evoked.plot_joint(ts_args=ts_args, times=times);
simulated_EEG_st = evoked.copy()
simulated_EEG_st.data[:,time_start:time_end] = F.lastRec['eeg'].npTS()
times = [peak_locs1, peak_locs2, peak_locs3, peak_locs4, peak_locs5]
simulated_joint_st = simulated_EEG_st.plot_joint(ts_args=ts_args, times=times)
#### rest is extral analysis on the neural states on different networks
### get labels for Yeo 200
url = 'https://raw.githubusercontent.com/ThomasYeoLab/CBIG/master/stable_projects/brain_parcellation/Schaefer2018_LocalGlobal/Parcellations/MNI/Centroid_coordinates/Schaefer2018_200Parcels_7Networks_order_FSLMNI152_2mm.Centroid_RAS.csv'
atlas = pd.read_csv(url)
labels = atlas['ROI Name']
# get networks
nets = [label.split('_')[2] for label in labels]
net_names = np.unique(np.array(nets))

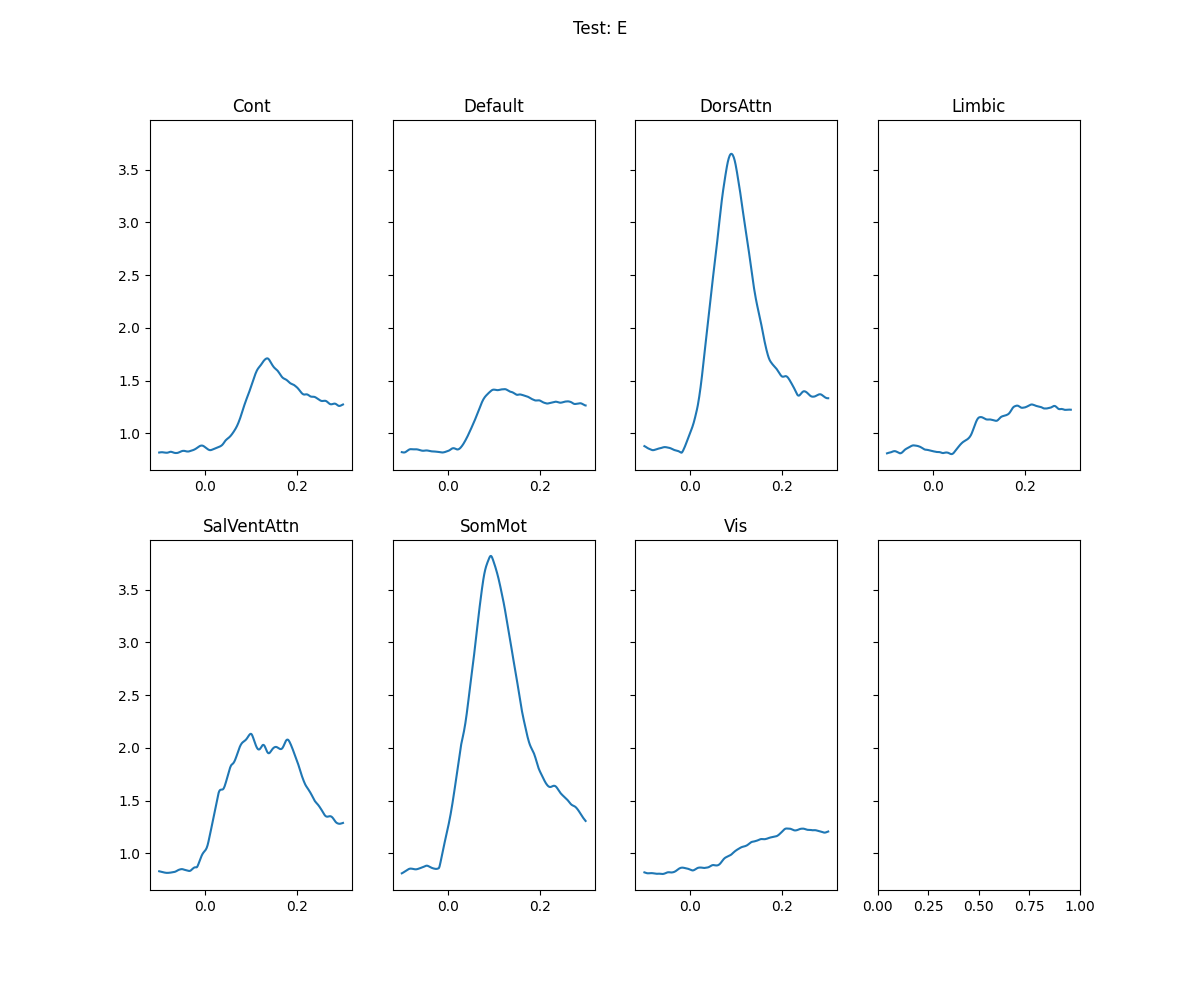

#### plot E response on each networks
fig, ax = plt.subplots(2,4, figsize=(12,10), sharey= True)
t = np.linspace(-0.1,0.3, 400)
for i, net in enumerate(net_names):
mask = np.array(nets) == net
ax[i//4, i%4].plot(t, F.lastRec['E'].npTS()[mask,:].mean(0).T)
ax[i//4, i%4].set_title(net)
plt.suptitle('Test: E')
plt.show()

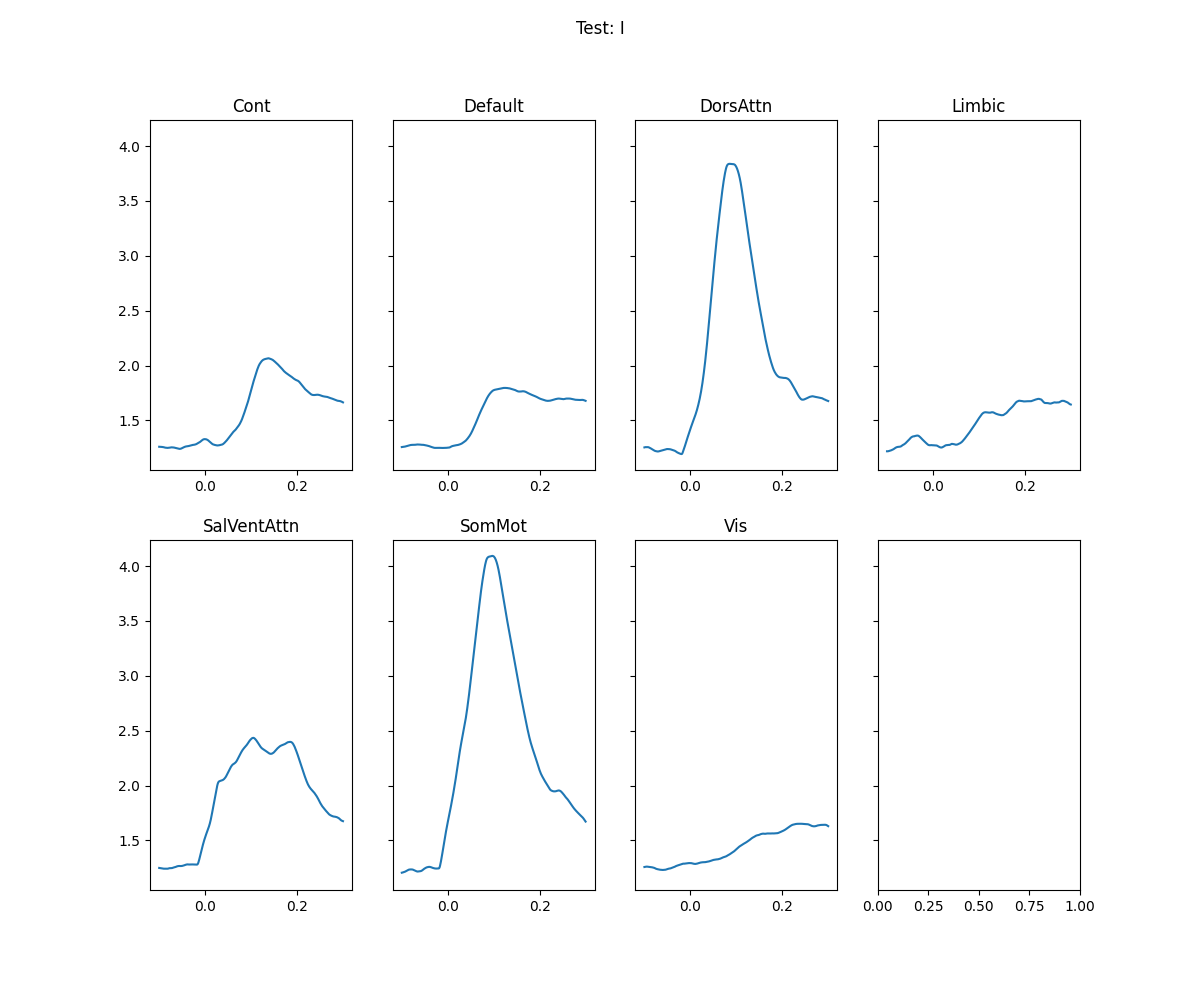

### plot I response at each networks
fig, ax = plt.subplots(2,4, figsize=(12,10), sharey= True)
t = np.linspace(-0.1,0.3, 400)
for i, net in enumerate(net_names):
mask = np.array(nets) == net
ax[i//4, i%4].plot(t, F.lastRec['I'].npTS()[mask,:].mean(0).T)
ax[i//4, i%4].set_title(net)
plt.suptitle('Test: I')
plt.show()

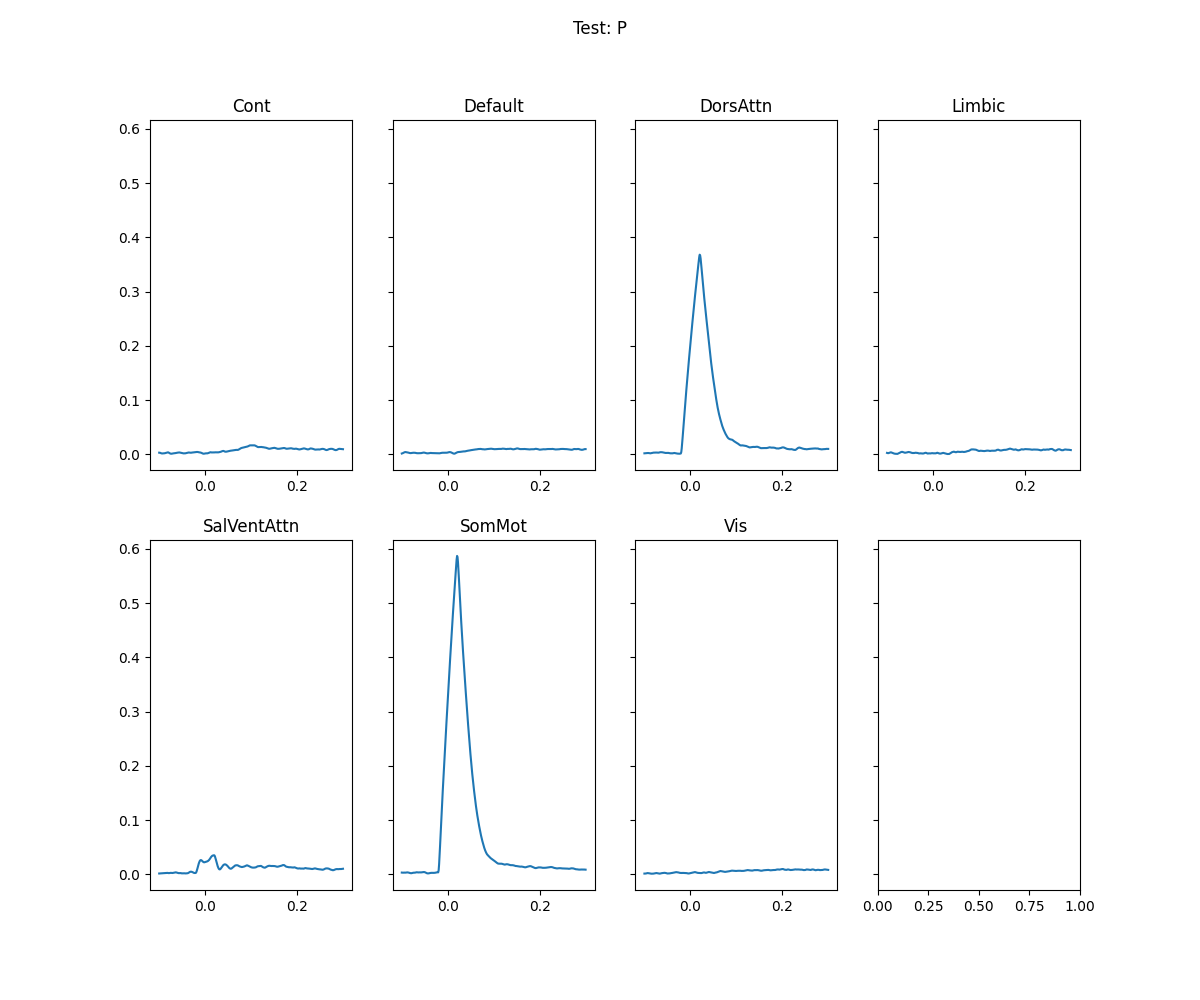

### plot P response at each networks
fig, ax = plt.subplots(2,4, figsize=(12,10), sharey= True)
t = np.linspace(-0.1,0.3, 400)
for i, net in enumerate(net_names):
mask = np.array(nets) == net
ax[i//4, i%4].plot(t, F.lastRec['P'].npTS()[mask,:].mean(0).T)
ax[i//4, i%4].set_title(net)
plt.suptitle('Test: P')
plt.show()
### plot phase of E at each network
j = complex(0,1)
fig, ax = plt.subplots(2,4, figsize=(12,10), sharey= True)
t = np.linspace(-0.1,0.3, 400)
phase = np.angle(F.lastRec['E'].npTS()+j*F.lastRec['Ev'].npTS())
for i, net in enumerate(net_names):
mask = np.array(nets) == net
ax[i//4, i%4].plot(t, phase[mask,:].mean(0).T)
ax[i//4, i%4].set_title(net)
plt.suptitle('Test: phase E')
plt.show()

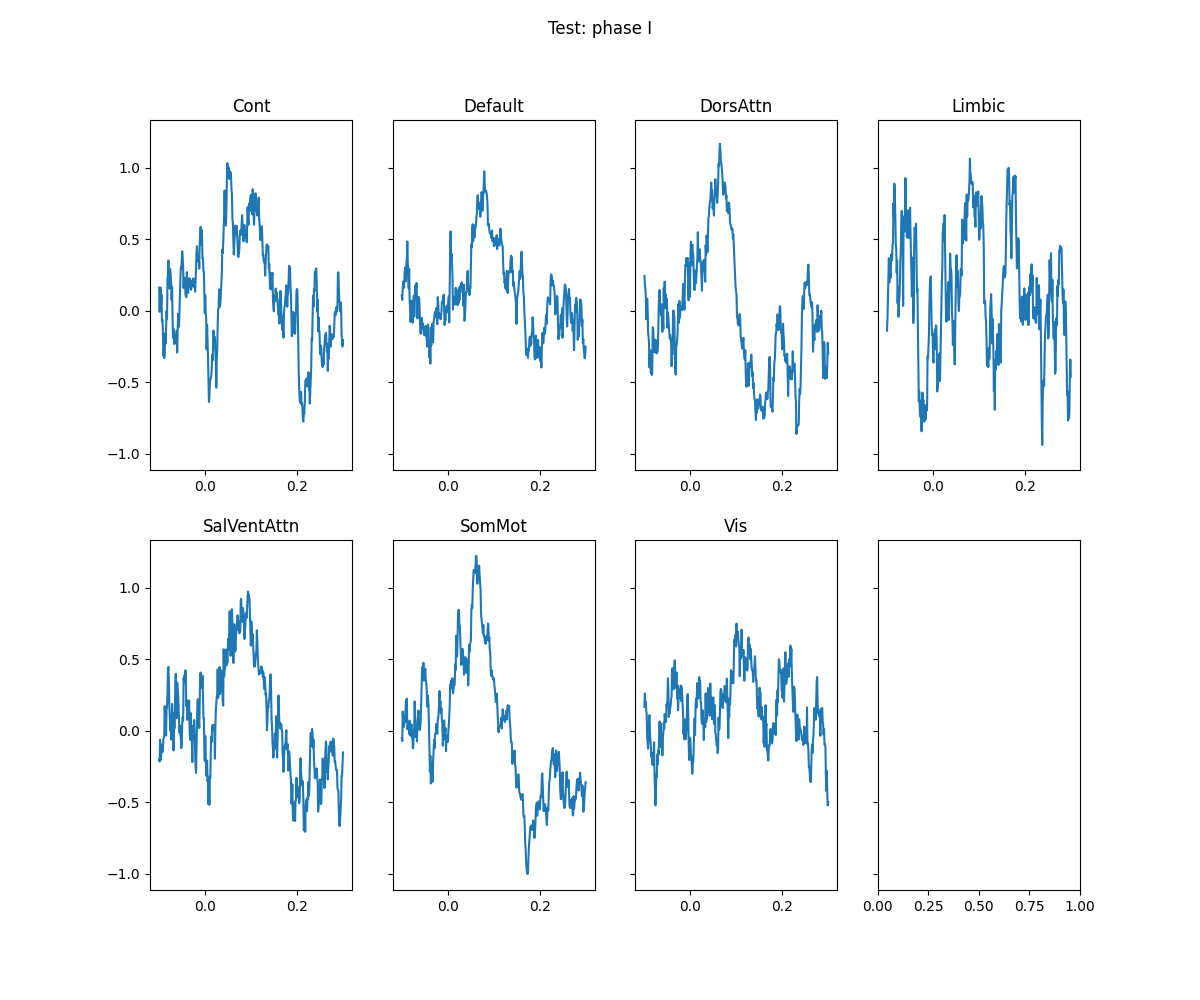

### plot I phase at each network
j = complex(0,1)
fig, ax = plt.subplots(2,4, figsize=(12,10), sharey= True)
t = np.linspace(-0.1,0.3, 400)
phase = np.angle(F.lastRec['I'].npTS()+j*F.lastRec['Iv'].npTS())
for i, net in enumerate(net_names):
mask = np.array(nets) == net
ax[i//4, i%4].plot(t, phase[mask,:].mean(0).T)
ax[i//4, i%4].set_title(net)
plt.suptitle('Test: phase I')
plt.show()

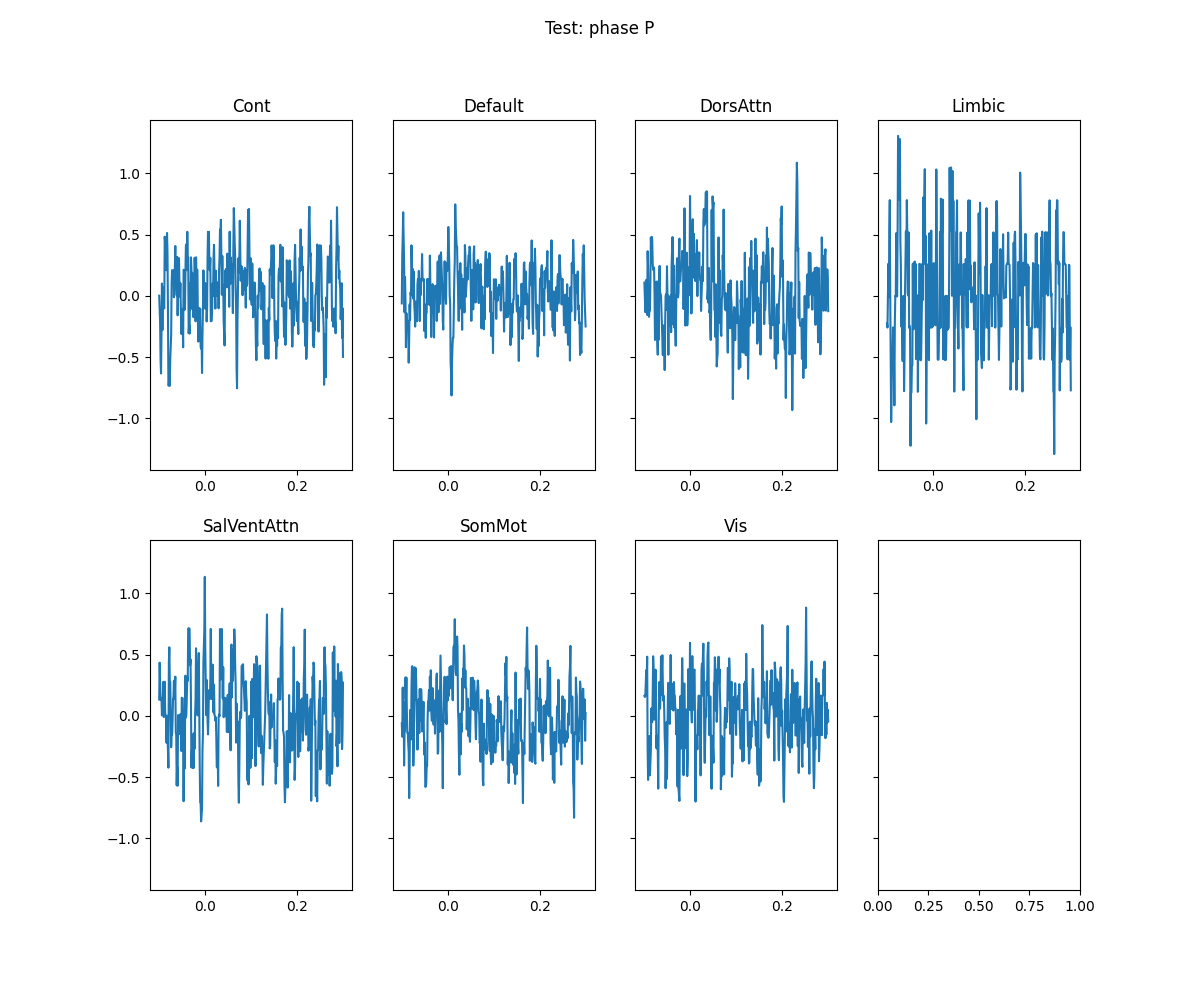

### plot P phase at each network
j = complex(0,1)
fig, ax = plt.subplots(2,4, figsize=(12,10), sharey= True)
t = np.linspace(-0.1,0.3, 400)
phase = np.angle(F.lastRec['P'].npTS()+j*F.lastRec['Pv'].npTS())
for i, net in enumerate(net_names):
mask = np.array(nets) == net
ax[i//4, i%4].plot(t, phase[mask,:].mean(0).T)
ax[i//4, i%4].set_title(net)
plt.suptitle('Test: phase P')
plt.show()
Projections have already been applied. Setting proj attribute to True.
Projections have already been applied. Setting proj attribute to True.
Results Description#
The plot above shows the original EEG data and the simulated EEG data using the fitted Jansen-Rit model. The simulated data closely resembles the original EEG data, indicating that the model fitting was successful. Peak locations extracted from different time intervals are marked on the plots, demonstrating the model’s ability to capture key features of the EEG signal.
References#
Momi, D., Wang, Z., Griffiths, J.D. (2023). “TMS-evoked responses are driven by recurrent large-scale network dynamics.” eLife, 10.7554/eLife.83232. https://doi.org/10.7554/eLife.83232
Total running time of the script: (1 minutes 13.500 seconds)
